While modern non-overlapping boats are very versatile, everyone that sails them knows that they suffer reaching in light airs. The smaller jib bas no chance matching the power of a large genoa, and the wind angle is too tight for a spinnaker. A Code 0 is the obvious answer, but that requires a secure tack-point in front of the bow and clear of the bow pulpit. As the 260 had no solution as delivered, several years ago I fabricated a mock-up out of cardboard with a plan to have it made in aluminum.
And while this was workable and would also have allowed for an asym to be tacked there are well, I did not proceed because it complicated another sore-spot with the boat, and that is anchoring. The 260 has no real bow roller, and retrieving a plow anchor with the plumb bow involves a high-wire acrobat's skills holding the anchor clear while pulling in the chain. The sprit would have made it worse. So I waited.
Salvation arrived in the form of a picture on a European-based First260 FB group. An Italian member posted a picture what looked to be a custom 260 sprint, with an integrated anchor roller. I quickly contacted him for details, and he pointed me to the builder in Italy.
The company was Gold Service Rigging, and they have a series of clever designs that allow a custom fit after some simple measurements were provided. As that already had the First 260 numbers, starting the process was as simply as picking materials and ordering. Now on to the sail!
I turned to my go-to sailmaker for this: Somerset sails, and we quickly came up with a build plan.

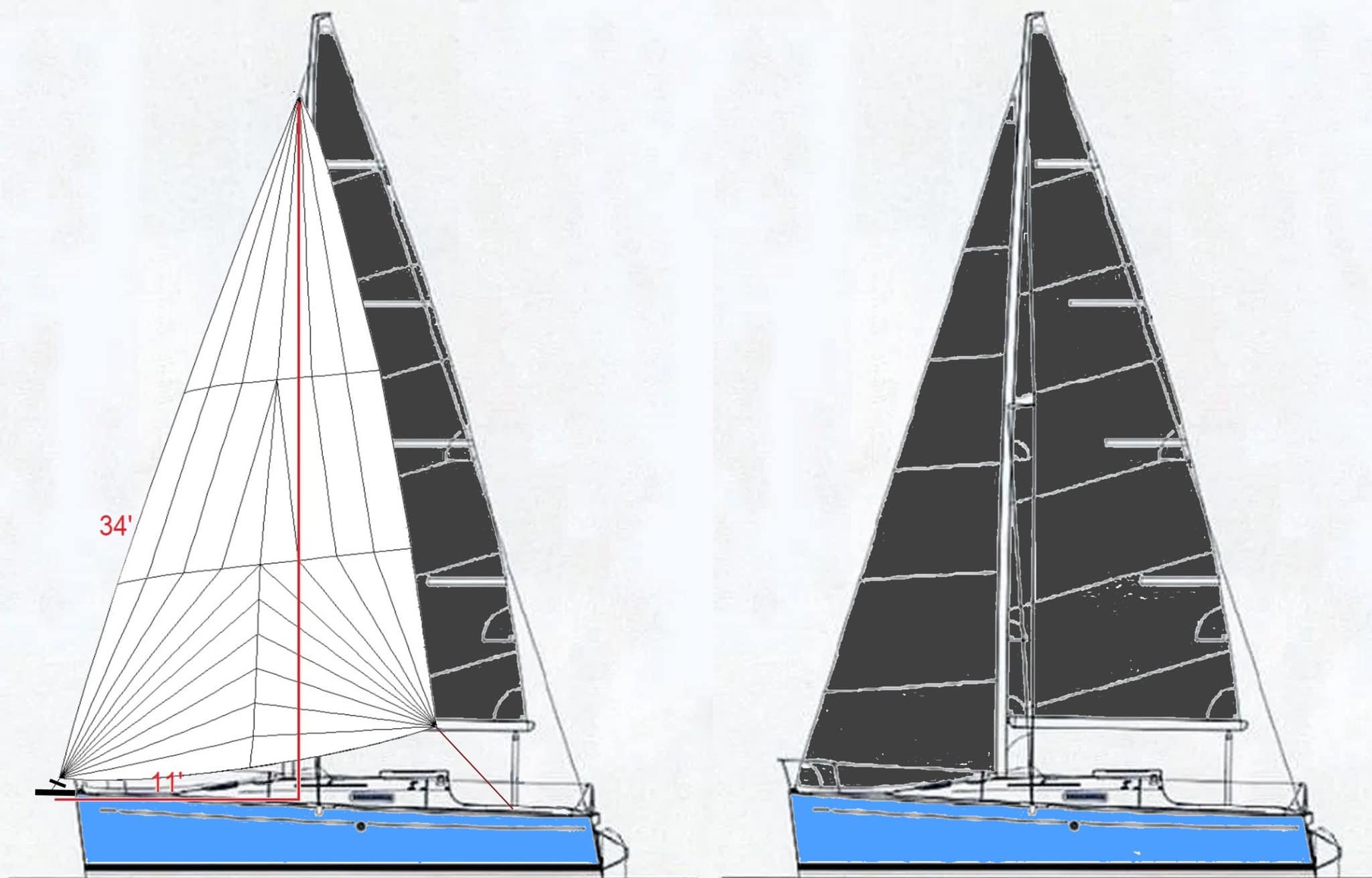

The sail was to be built out of DP CZ laminate, with a high clew to facilitate reaching and allow better furling. You can see how much bigger the CZ is compared to the 105%. If you plan on racing with it, make sure your mid-girth:foot ratio conforms to the RRS and and local requirements for spinnakers. We also agreed on the furler that I would use so we could size the sail, a Ronstan Series 80.
Everything arrived pretty much the week of launch, so we had a couple of busy days. The install of the sprit was amazingly straightforward; most of the time was spent checking the location of hole to drill in the boat! Once done, the sprit is super solid, and looks factory. No regrets!
Flying the asym from the tip of the sprit is easy and powerful, the Code Zero has delivered everything we could have wanted. First is furling ease. It winds perfectly on its anti-torsion line via the Ronstan furler.
And its off-wind performance delivers. In 7 knots true wind, the boat reaches along at an easy 6 knots.
And anchoring a breeze now. When we race, we pull the anchor and chain down and back into the boat and store them in the anchor locker, keeping them away form the flying sails.
Several readers have asked about retractable poles. Indeed we had one on BlueJ for a season or two. And it worked for Asyms, but did not help with the other two problems. Using it on a lake was also complex due to the constant pole management (we rarely sail on a single point of sail for long). But they ARE effective, and a decent solution. I wrote about it at the time, HERE.
I have a after-season full report of the Code Zero performance HERE.
Interesting solution. I always wanted to have a bowsprit in my first 260 but I was thinking to mount the regular telescopical one. Thanks for ypur blog, all about your F260 experience so interesting!
Also a great solution. You may have saw, I had a Sparcraft pole on the boat for awhile. And while it worked great, it was not the best solution for lake sailing, where the constant pole management can become a hassle. And it clutters the foredeck. The final disadvantage that for the very long size of the pole, the effective projection is only 16 inches (40cm). The pole blog entry is here: http://rarerarebird.blogspot.com/2014/01/260-mod-bowsprit.html
